60v Electric Bike Battery

Litpax 60v Lithium ion Battery Pack in Heavy Metal Case Shock Proof and Weather Proof with Smart BMS App Control for Electric-Bike/Electric Vehicles (Scooty,Bike)… (60v-29ah)
Rs.25000 Rs.30000
Login as a Business

Key Features

  • Lightweight & Compact: 60% lighter than lead-acid, easy to fit in scooters.
  • High Energy Density: Delivers more power in a smaller size.
  • Fast Charging: 3–4 hours full charge (with recommended charger).
  • Long Cycle Life: 800–1200 cycles, 3–5 times longer than lead-acid.
  • Consistent Performance: Stable voltage & higher efficiency throughout discharge.

We are the leading electric bike battery manufacturer in India. We offer products, solutions, and services across the entire energy value chain. We support our customers on their way to a more sustainable future.

Feature Image

Safety & Reliability

Advanced BMS (Battery Management System) ensures safe operation.
Thermal protection prevents overheating and enhances battery life.
Short-circuit & Over-current protection for rider safety.
Short-circuit & Over-current protection for rider safety.
Cell balancing technology for longer-lasting packs.
Built-in safeguards against fire & explosion risks.

Feature Image

Battery Life & Savings

3–5 years of reliable use (vs 1 year for lead-acid).
Cost-effective in the long run – though initial cost is higher, savings come from:
Fewer replacements (1 lithium ? 3–4 lead-acid sets)
Lower electricity bills due to higher efficiency
Reduced maintenance & downtime

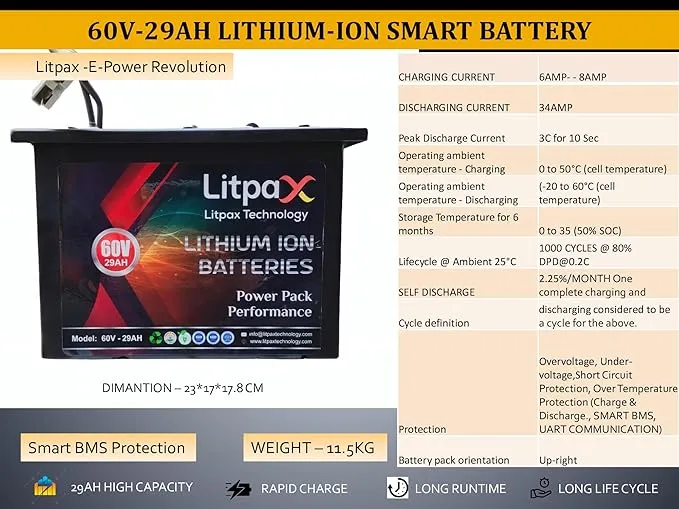

  • Nominal Voltage 60 V (16S, 59.2 V nominal)
  • Full Charge Voltage 67.2 V
  • Cut-off Voltage 44.8–48 V
  • Cell Type 18650 Li-ion Cell, 3.7 V, 2.6 Ah
  • Cell Chemistry NMC (Lithium Nickel Manganese Cobalt)
  • Pack Configurations 16S × 9P ~ 20P
  • Cycle Life 800–1200 cycles (to 80% capacity)
  • Continuous Discharge Current 20–40 A (design dependent)
  • Peak Discharge Current 40–70 A
  • Operating Temperature Charge: 0–45°C / Discharge: -20–60°C
  • BMS Protection Over-charge, Over-discharge, Over-current, Short-circuit, Temperature cut-off, Balancing
  • Certifications ........
  • Warranty 12–36 Months (as per policy)
  • Motor Power 1000 W – 1200 W BLDC hub motors
  • Controller Voltage 60 V rated (accepts 48–67 V operating range)
  • Continuous Current Requirement ? 30 A (for standard 1000–1200 W scooters)
  • Peak Current Requirement ? 60 A (for acceleration / hill climbs)
  • Top Speed Top Speed 40 – 65 km/h (depends on scooter gearing & motor)
  • Typical Load Capacity Typical Load Capacity 120 – 150 kg (rider + luggage)
  • Charger Specification 67.2 V CC-CV charger, 5–10 A recommended

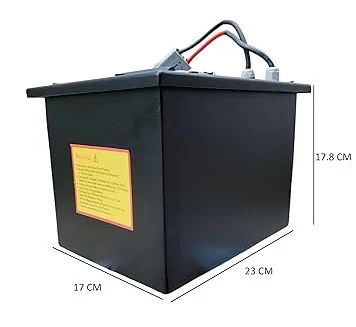

  • Physical Fitment Under-seat or chassis battery box (custom enclosure as per scooter model)
  • Lightweight & Compact: 60% lighter than lead-acid, easy to fit in scooters.
  • High Energy Density: Delivers more power in a smaller size.
  • Fast Charging: 3–4 hours full charge (with recommended charger).
  • Long Cycle Life: 800–1200 cycles, 3–5 times longer than lead-acid.
  • Consistent Performance: Stable voltage & higher efficiency throughout discharge.
  • Maintenance-Free: No water topping, no acid leakage, zero hassle.
  • Smart BMS Protection: Safeguards against over-charge, deep discharge, short-circuit, and overheating.

Product & Manufacturer Details

Brand Name LITPAX
Manufacturer Litpax Technology Pvt Ltd
Model Name Litpax Inverter Battery
Packer Litpax Technology Pvt Ltd Mob- 97290 82922
Marketer Name Mohit Kumar
Marketer Address 72B HSIIDC Industrial Area,Hisar Road, Sirsa -125055
Marketer Website Link https://litpaxtechnology.com/
Country of Manufacturing INDIA
Manufacturer Address 72B HSIIDC Industrial Area,Hisar Road, Sirsa -125055
