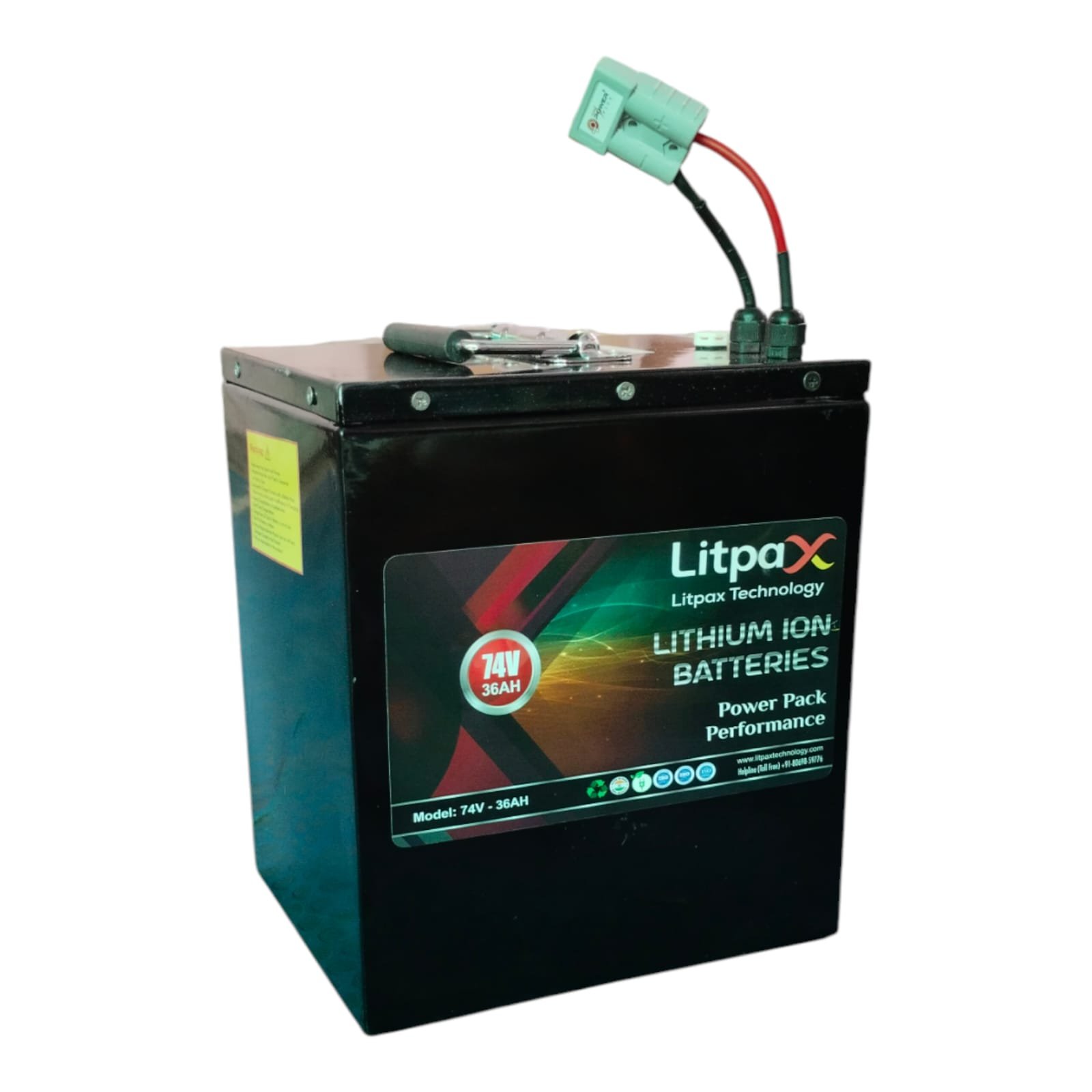

74v Electric Bike Battery

Model: LITPAX-74V Series Application: Electric Scooters (1000 W – 1200 W)
Rs.25000 Rs.30000
Login as a Business

Key Features

  • Lightweight & Compact: 60% lighter than lead-acid, easy to fit in scooters.
  • High Energy Density: Delivers more power in a smaller size.
  • Fast Charging: 3–4 hours full charge (with recommended charger).
  • Long Cycle Life: 800–1200 cycles, 3–5 times longer than lead-acid.
  • Consistent Performance: Stable voltage & higher efficiency throughout discharge.

We are the leading electric bike battery manufacturer in India. We offer products, solutions, and services across the entire energy value chain. We support our customers on their way to a more sustainable future.

Feature Image

Safety & Reliability

Advanced BMS (Battery Management System) ensures safe operation. Thermal protection prevents overheating and enhances battery life. Short-circuit & Over-current protection for rider safety. Short-circuit & Over-current protection for rider safety. Cell balancing technology for longer-lasting packs. Built-in safeguards against fire & explosion risks.

Feature Image

Battery Life & Savings

3–5 years of reliable use (vs 1 year for lead-acid). Cost-effective in the long run – though initial cost is higher, savings come from: Fewer replacements (1 lithium ? 3–4 lead-acid sets), Lower electricity bills due to higher efficiency, Reduced maintenance & downtime.

  • Nominal Voltage 74 V (20S, 74.0 V nominal)
  • Full Charge Voltage 84.0 V
  • Cut-off Voltage 56–60 V (depending on BMS setting)
  • Cell Type 18650 Li-ion Cell, 3.7 V, 2.6 Ah
  • Cell Chemistry NMC (Lithium Nickel Manganese Cobalt)
  • Pack Configurations 20S × 9P ~ 20P
  • Cycle Life 800–1200 cycles (to 80% capacity)
  • Continuous Discharge Current 20–40 A (design dependent)
  • Peak Discharge Current 40–70 A
  • Operating Temperature Charge: 0–45°C / Discharge: -20–60°C
  • BMS Protection Over-charge, Over-discharge, Over-current, Short-circuit, Temperature cut-off, Balancing
  • Certifications ........
  • Warranty 12–36 Months (as per policy)
  • Motor Power 1000 W – 1200 W BLDC hub motors (can also support up to 2000 W with proper BMS)
  • Controller Voltage 72 V rated (operating range ~60–84 V)
  • Continuous Current Requirement ? 35 A
  • Peak Current Requirement ? 70 A
  • Top Speed 55 – 80 km/h (depends on motor & gearing)
  • Typical Load Capacity 120 – 150 kg (rider + luggage)
  • Charger Specification 84.0 V CC-CV charger, 5–10 A recommended
  • Physical Fitment Under-seat or chassis battery box (custom enclosure as per scooter model)
  • Lightweight & Compact: 60% lighter than lead-acid, easy to fit in scooters.
  • High Energy Density: Delivers more power in a smaller size.
  • Fast Charging: 3–4 hours full charge (with recommended charger).
  • Long Cycle Life: 800–1200 cycles, 3–5 times longer than lead-acid.
  • Consistent Performance: Stable voltage & higher efficiency throughout discharge.
  • Maintenance-Free: No water topping, no acid leakage, zero hassle.
  • Smart BMS Protection: Safeguards against over-charge, deep discharge, short-circuit, and overheating.
  • Eco-Friendly: No toxic lead, lower carbon footprint, recyclable.
  • Customizable Capacities: Multiple Ah options available as per scooter needs.

Product & Manufacturer Details

Brand Name LITPAX
Manufacturer Litpax Technology Pvt Ltd
Model Name Litpax Inverter Battery
Packer Litpax Technology Pvt Ltd Mob- 97290 82922
Marketer Name Mohit Kumar
Marketer Address 72B HSIIDC Industrial Area,Hisar Road, Sirsa -125055
Marketer Website Link https://litpaxtechnology.com/
Country of Manufacturing INDIA
Manufacturer Address 72B HSIIDC Industrial Area,Hisar Road, Sirsa -125055
